PROCESS YOUR FILES WITH IRISX

Upload your engineering drawings and extract valuable dimensional data using advanced computer vision technology. Get results in seconds, not hours.

Upload Your File

Choose File(s)
Ready to process your file

DISCOVER THE POWER OF IRISX

IrisX accurately extracts dimensional data from CAD drawings. This data can then be utilized in numerous applications, ranging from manufacturing and quality control to analytics, and even in custom-made applications. Because dimensions are numbered with balloons and revisions are tracked, there is no longer any confusion in communication throughout the product development lifecycle.

  • TRACK DIMENSIONS

    Balloon number drawing features to eliminate confusion in preparing any dimensions.

  • TRACE REVISIONS

    With version control easily trace changes made to any drawings.

  • EXPORT DATA & INFUSE WITH OTHER APPLICATIONS

    Export data in excel format for further analysis or infuse with other applications.

    Works with PDF drawings, Image files, Solidworks, and NX!

⏱️

SAVE TIME

Seconds, not hours, to find key characteristics of any mechanical drawing. Push of a button to export all the extracted data FAI reports and more.

📊

REDUCE ERRORS

Several machine detection models check and interrogate all characters to ensure accuracy. COAT grammar rules ensure that each callout adheres to the guidelines.

🔒

KEEP SECURED

IrisX software does not access the internet and does not send your drawing to unknown locations on the web. Your drawings are secured and stay on premise.

BETTER TOGETHER

SAVE THOUSANDS OF HOURS WITH IRISX

+ T360

Tolerance 360 (T360) is the world's most advanced collaborative tolerance analysis software. Its approach is a paradigm shift that replaces manual intensive processes.

Maximize the benefits of T360 by using it in conjunction with IrisX.

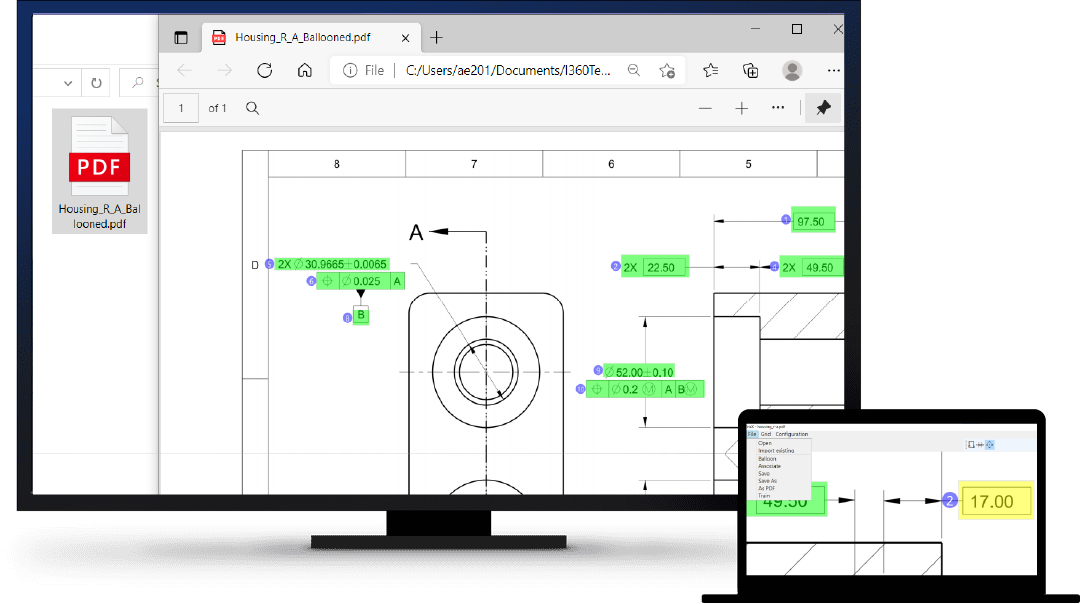

Technical drawing with dimensional annotations showing IrisX capabilities
